特徴ギャラリー製品の説明見積依頼

特徴

仕様

名前: スイベル・ジョイントは

モデル: SLX

定格荷重: 5-250KN

直径: 8～30mm

重さ: 0.2〜8KG

保証: 1年

ハイライト:

360 Degree Rotation Swivel Joint

Heavy Duty Swivel Connector

5-250KN Rated Load Rotation Joint

基本情報

起源の場所: 寧波

ブランド名: Suntech

証明: ISO

モデル番号: SLX

お支払配送条件

パッケージの詳細: 合板ケース

受渡し時間: 3～7日

支払条件: LC、T/T

供給の能力: 30000 PCS/月

ギャラリー

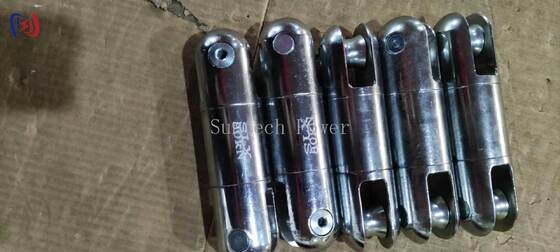

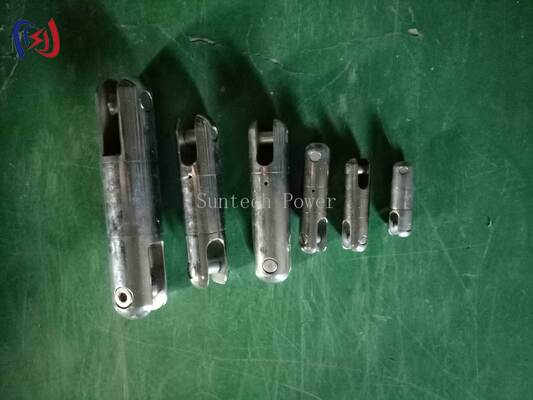

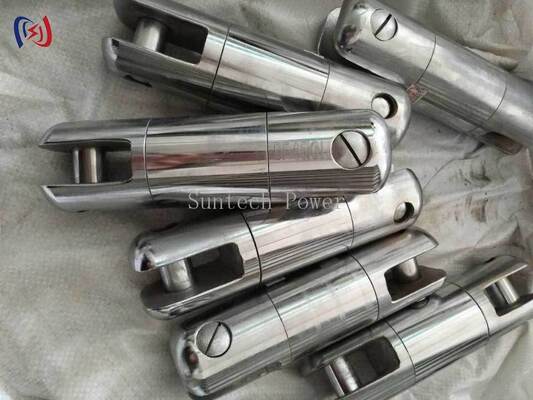

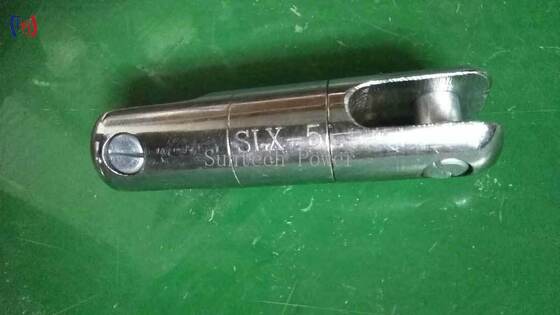

Heavy Duty Swivel Joint for 360 Degree Rotation with 5-250KN Rated Load in Overhead Line and Substation Rigging

製品の説明

Heavy Duty Swivel Joints for 360 Degree Rotation

Heavy Duty Swivel Joints designed for 360-degree rotation in overhead line and substation rigging systems.

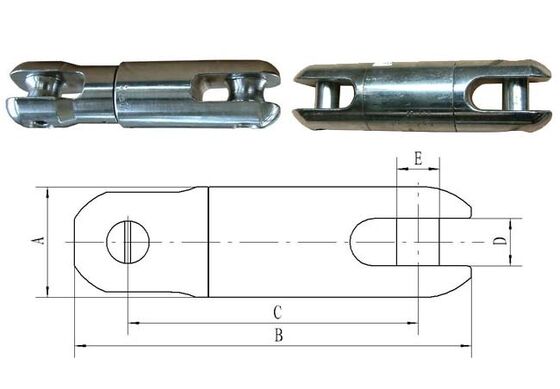

Product Specifications

Item Number	Model	Rated Load (KN)	Main Size (mm)	Weight (Kg)
17121	SLX-0.5	5	19	0.20
17122	SLX-1	10	30	0.40
17123	SLX-2	20	35	0.55
17124	SLX-3	30	37	0.65
17125	SLX-5	50	42	1.50
17126	SLX-8	80	57	2.40
17127	SL130	130	62	3.50
17128	SL180	180	75	7.20
17129	SL250	250	85	10.5
17130	SL250V	250	80	8.0

Product Overview

Swivel Joints are essential mechanical components designed to allow controlled, 360-degree rotation between connected parts within rigging or structural systems. In electrical construction, utility maintenance, and power line work, they eliminate dangerous uncontrolled twisting, spinning, and cable entanglement. These joints feature robust bodies housing precision bearings or bushing systems with connection points on either side, enabling one side to rotate freely relative to the other when integrated into lifting slings, pulling lines, or support assemblies.

Key Features and Benefits

Prevents Dangerous Load Rotation and Uncontrolled Spinning: Absorbs and isolates torsion, allowing ropes to rotate while loads remain stable and correctly oriented for safe lifting operations.
Eliminates Rope Twist and Prevents Cable Entanglement: Allows pulling ropes and cables to de-twist freely, preventing kinks, snarls, and potential snap-backs that could injure personnel.
Reduces Wear and Extends Equipment Life: Eliminates cyclic torsional stress that accelerates metal fatigue in wire rope and causes abnormal wear patterns on synthetic slings.
Facilitates Precise Load Positioning and Alignment: Provides fine control over load rotation for millimeter-perfect positioning without physically spinning cranes or repositioning slings.
Essential for Safe Conductor Stringing Operations: Prevents conductors from being installed in a twisted state, which could affect sag and long-term mechanical performance.
Improves Safety for Personnel Working with Tensioned Lines: Manages torsional energy through gradual, controlled rotation, protecting crews from sudden, unpredictable line movements.
Durable Construction for Demanding Environments: Built from forged alloy steel or high-strength stainless steel with sealed, lubricated ball or roller bearings for thousands of cycles in harsh conditions.
Versatile for Electrical Applications: Used in aerial lift buckets, gin pole systems, pulling grips, and material handling setups throughout the utility sector.
Critical for Professional Rigging Practices: Demonstrates understanding of dynamic forces and proactive risk mitigation, aligning with highest industry safety standards.
Smart Investment in Operational Efficiency: Prevents damage to expensive equipment, reduces downtime, and enhances project execution through improved safety and reduced wear.

Swivel Joints are fundamental safety and productivity tools in electrical construction and utility maintenance. By providing controlled rotation points, they transform hazardous lifts and pulls into safe, smooth, and precise operations, protecting both personnel and critical infrastructure.
