Heavy Duty Powered Winch with 3-8T Tractive Force and 4-11M/Min Traction Speed for Cable Pulling

1個
MOQ
negotiable
価格
Heavy Duty Powered Winch with 3-8T Tractive Force and 4-11M/Min Traction Speed for Cable Pulling
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
名前: 動力を与えられたウィンチ
商品番号: 09121-09125A
モデル: JJQ-30
回転方向: コーネーション/リバーサル
回転速度: 9-16RPM
牽引速度: 4-11M/分
牽引力: 3-8T
力: 4.04-9.6KW
重さ: 82〜230kg
保証: 1年
ハイライト:

Heavy Duty Powered Winch

,

3-8T Tractive Force Winch

,

4-11M/Min Traction Speed Winch
基本情報
起源の場所: 寧波
ブランド名: Suntech
証明: ISO
モデル番号: JJQ-30
お支払配送条件
パッケージの詳細: 合板ケース
受渡し時間: 3-7days
支払条件: T/T、L/C
供給の能力: 1000 PCS/月
製品の説明

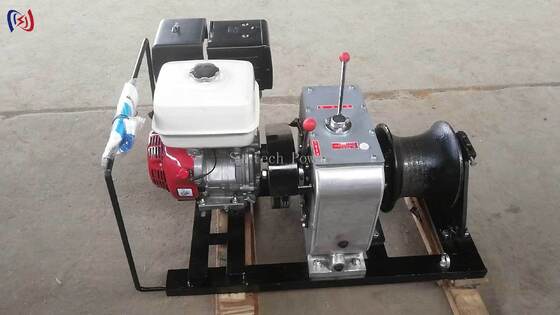

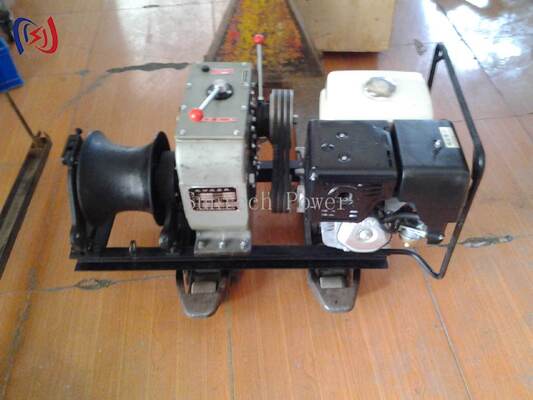

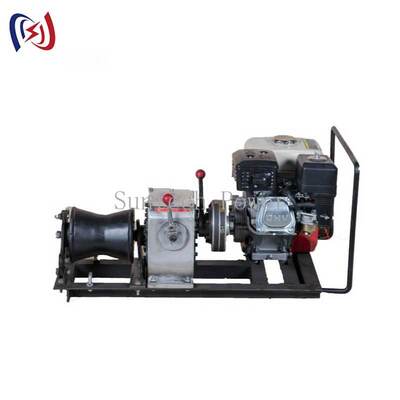

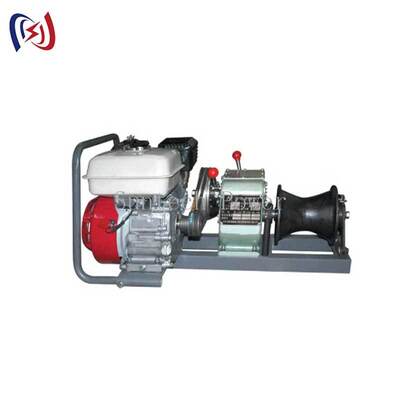

Heavy Duty Powered Winch for Cable Pulling and Conductor Stringing
Essential mechanized equipment for power line construction, providing controlled pulling and lifting capability for demanding applications in the modern power industry.
Product Specifications
Item No. Model Rotation Direction Gear Rotational Speed (BPM) Traction Speed (M/MIN) Tractive Force (T) Power (KW) Outline Size (MM) Weight (KG)
09121B JJD-30 3KW Electromotor Corotation I slow 8.5 4.0 3.0 3.00 770*600*460 108
Ⅱ fast 10.5 6.5 1.8
Reversal reverse 7.0 3.0 No lifting
09123B JJD-50 4KW Electromotor Corotation I slow 5.5 3.5 5.0 4.00 1000*850*520 160
Ⅱ fast 14.0 8.0 3.0
Reversal reverse 7.0 4.0 No lifting
Heavy Duty Powered Winch with 3-8T Tractive Force and 4-11M/Min Traction Speed for Cable Pulling 0
Powered Winch Applications & Benefits
Powered winches utilize electric, hydraulic, or diesel motors to generate significant force, dramatically increasing efficiency and enabling the handling of extremely heavy loads that would be impossible with manual equipment. These industrial workhorses combine raw power with operational control for power construction projects.
Significant Force Generation: Produces immense pulling force consistently for heavy conductors, equipment recovery, and lifting operations.
Improved Operational Efficiency: Dramatically accelerates work processes, reducing labor costs and project completion times.
Precise Load Control: Variable speed operation allows gentle starts, tension-based adjustments, and precise positioning.
Enhanced Safety: Reduces physical strain and injury risk with remote control operation away from potential hazards.
Durability for Harsh Conditions: Heavy-duty steel frames, robust gear systems, and weather-resistant components ensure reliable performance.
Versatile Applications: Suitable for tension stringing, underground cable installation, substation equipment positioning, and storm recovery.
Portable Deployment: Flexible configurations allow transport on trucks or trailers with mounting to sturdy anchor points.
Modern Construction Essential: Enables advanced power construction techniques that are faster, safer, and higher quality.
Reduced Labor Fatigue: Allows crews to focus on supervision and skilled tasks while maintaining safety protocols.
Strategic Investment: Expands project capabilities, improves competitiveness, and demonstrates commitment to professional-grade equipment.
By selecting a properly specified Powered Winch, you invest in a tool that increases your team's capability, safety, and efficiency across power construction and maintenance challenges, making it a cornerstone of modern electrical infrastructure work.
