ホーム /製品/用具をひもでつなぐコンダクター/High Voltage Insulated Tightener for Safe Live Line Work with Fiberglass Insulating Boom on Overhead Lines

High Voltage Insulated Tightener for Safe Live Line Work with Fiberglass Insulating Boom on Overhead Lines

1個
MOQ
negotiable
価格
High Voltage Insulated Tightener for Safe Live Line Work with Fiberglass Insulating Boom on Overhead Lines
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
名前: 断熱式緊縮器
商品番号: 14105-14107
モデル: SJJY-1
定格吊り上げ/引っ張り: 10/5
網の厚さ × 長さ: 5×2300mm
最小長: 410~480mm
最大長: 1210~1400mm
重さ: 3.3-4.5KG
ハイライト:

High Voltage Insulated Tightener

,

Safe Live Line Tightener

,

Fiberglass Insulating Boom Tightener
基本情報
起源の場所: 寧波
ブランド名: Suntech
証明: ISO
モデル番号: SJJY-1
お支払配送条件
パッケージの詳細: 合板ケース
受渡し時間: 3-7days
支払条件: LC、T/T
供給の能力: 1000 PCS/月
製品の説明
High Voltage Insulated Tightener for Safe Live Line Work on Overhead Distribution and Transmission Lines
Product Overview
The Insulated Tightener is a critical piece of specialized equipment designed to enable safe and efficient work on or near energized electrical conductors. It serves as a tensioning and pulling tool that allows line crews to tighten, slacken, or reposition conductors while maintaining a safe insulating barrier between the worker and the live line.
Technical Specifications
Item No. Model Rated Lifting/Pulling Webbing thickness*length(mm) Min length(mm) Max length(mm) Weight(kg)
14105 SJJY-1 10/5 5*2300 410 1210 3.3
14106 SJJY-1.5 15/7.5 6*2300 480 1400 4.2
14107 SJJY-2 20/10 6*2300 480 1400 4.5

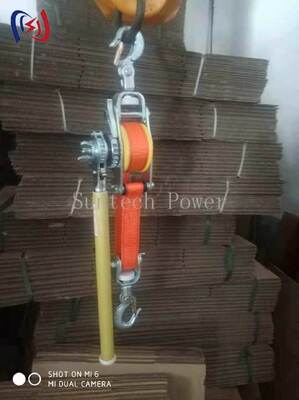

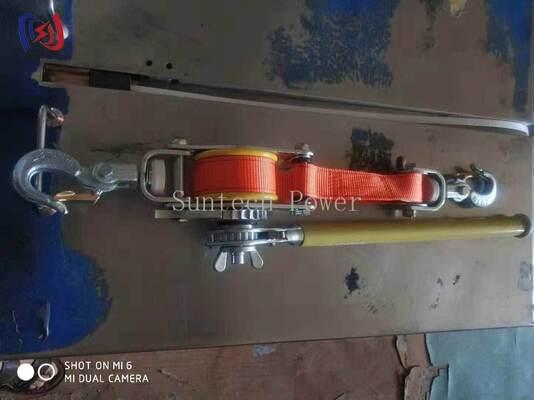

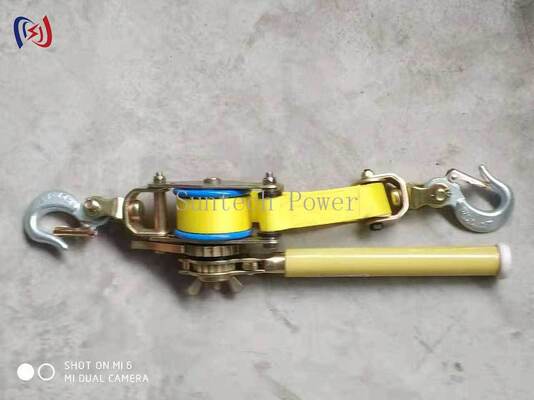

High Voltage Insulated Tightener for Safe Live Line Work with Fiberglass Insulating Boom on Overhead Lines 0
Key Features and Benefits
  • Essential for Live Line Safety
    Provides a safe working method for tasks on energized lines with high dielectric strength insulating materials that prevent current from passing to the ground through the tool and worker.
  • High Strength and Dielectric Insulating Boom
    Constructed with fiberglass reinforced plastic for excellent mechanical strength and high dielectric properties to withstand electrical stress.
  • Efficient Mechanical Advantage System
    Incorporates pulley block or ratchet mechanisms allowing single workers to apply significant conductor tension with low input force.
  • Secure and Non-Damaging Conductor Grip
    Engineered to hold conductors firmly without causing damage to surface, strands, or protective coatings.
  • Compatibility with Hot Stick Tools
    Features standardized connection points for attachment to insulated hot sticks, enabling safe distance operation.
  • Durability for Rugged Field Use
    Built to withstand harsh outdoor conditions with resistance to impact, UV degradation, moisture, and temperature extremes.
  • Compliance with International Safety Standards
    Rigorously tested and certified to meet international standards for dielectric tests, mechanical load tests, and voltage performance.
  • Enables Work Without Service Interruption
    Allows maintenance, repairs, and new connections without taking customers offline, improving system reliability.
  • Versatility in Utility Applications
    Essential for pulling new conductors, replacing insulators, adjusting sag, removing jumper lines, and storm restoration work.
  • Investment in Safety and Efficiency
    Pays for itself by enabling safe work practices that prevent accidents and allow work without costly outages.
By choosing a professionally rated and certified Insulated Tightener, you are making a direct investment in the safety of your workforce and the reliability of the power network you maintain.
