名前: 3つのバンドル導体用のヘッドボード

商品番号: 17228-17230 年

モデル: SZ3A-10

定格荷重: 100-180KN

適用可能な文字列ブロックシブ幅: 100~110mm

重さ: 114-142kg

ハイライト:

Precise Triangular Configuration Head Board

Balanced Tensile Forces Anti Twist Wire Rope

Exceptional Strength Conductor Stringing Tool

基本情報

ブランド名: Suntech

証明: ISO

Model Number: Conductor Mesh Sock Joints

お支払配送条件

Packaging Details: Plywood Case

Delivery Time: 3-7days

Payment Terms: T/T,L/C

Supply Ability: 5000 PCS/Month

ギャラリー

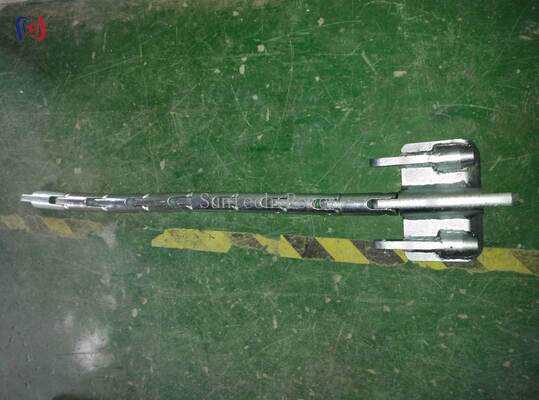

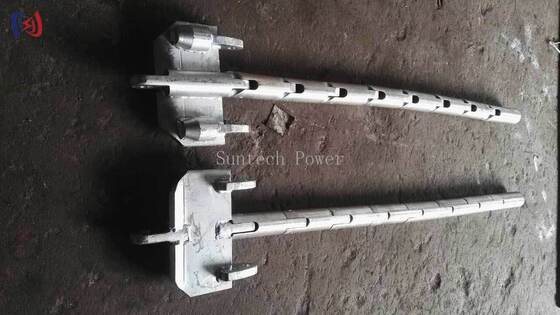

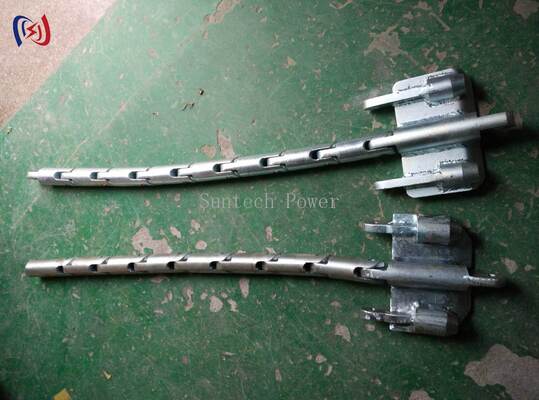

Robust Head Board for Three Bundle Conductors Maintains Precise Triangular Configuration Balances Tensile Forces and Offers Exceptional Strength

製品の説明

Robust Head Board for Three Bundle Conductors Ensuring Triangular Conductor Spacing During Installation

Item No.	Model	Rated Load(KN)	Applicable Stringing Block Sheave Width(MM)	Weight(KG)	Steel rop length(M)
17228	SZ3A-10	100	100	114	130+115
17229	SZ3A-13	130	110	130
17230	SZ3A-18	180	110	142

The Head Board for Three Bundle Conductors is a critical piece of specialized equipment for the construction of extra-high-voltage transmission lines, where three-conductor bundles are used to increase capacity and reduce losses. This robust tool is engineered to simultaneously handle three separate conductors, maintaining their precise geometric configuration—typically a triangular pattern—throughout the demanding stringing process. It serves as the vital link between the powerful pulling machinery and the conductors, ensuring that tension is applied evenly and that the conductors are paid out from their reels without twisting, tangling, or suffering surface abrasion. For any project involving high-capacity transmission corridors, this head board is indispensable for achieving a safe, efficient, and high-quality installation that meets the rigorous standards of modern power grids.

Maintains Precise Triangular Configuration: The primary function of this head board is to preserve the exact geometric spacing between the three sub-conductors, forming a stable triangular bundle. This precise configuration is critical for the electrical and aerodynamic performance of the line, optimizing corona performance and reducing audible noise. It effectively prevents the conductors from twisting together or colliding, which could cause severe damage and compromise the long term integrity of the transmission line.
Balances Tensile Forces Across Three Conductors: A key engineering challenge is distributing the immense pulling force equally among all three conductors. This head board is meticulously designed to ensure that each conductor shares the mechanical load equally. This balanced force distribution prevents uneven sagging, avoids overstressing any single conductor, and ensures the entire bundle is tensioned uniformly from the start of the pull to its conclusion.
Exceptional Strength and Durability: Fabricated from high strength aluminum alloys or forged steel, this head board is built to withstand the extreme forces encountered when pulling heavy, large diameter conductors over long distances and across multiple transmission towers. Its reinforced frame and heavy duty connection points are engineered to resist bending, deformation, and fatigue, guaranteeing reliability on the most demanding projects.
Superior Conductor Protection: The design prioritizes the protection of the valuable conductors. It features smoothly contoured sheaves or contact points that guide each conductor without causing scratches, abrasion, or crushing of the outer strands. By safeguarding the conductor s surface integrity, the head board helps prevent future points of electrical resistance buildup and potential failure, ensuring the long term health of the asset.
Enhanced Operational Safety and Control: Managing three conductors simultaneously presents significant safety challenges. This head board provides a secure and controlled method for the operation, significantly reducing the risk of conductors whipping, snapping, or becoming uncontrollable. Its robust construction gives the crew confidence, allowing them to focus on the overall stringing process with the assurance that the connection point is secure.
Optimized for Maximum Efficiency: Using a dedicated head board for a three bundle configuration is a highly efficient approach. It allows all three conductors to be strung in a single, synchronized pass. This method is drastically faster and requires less equipment and labor compared to pulling each conductor individually, leading to substantial time and cost savings on large scale transmission line projects.
Seamless Integration with Stringing Systems: This component is designed for full compatibility with standard stringing equipment, including swivels, pulling eyes, and tensioners. This interoperability ensures a smooth workflow from the reel to the dead end structure, minimizing setup complexity and facilitating a streamlined operation for the entire crew.
Long Service Life with Minimal Maintenance: Constructed for the harsh realities of construction sites, the head board is built to last. Its corrosion resistant properties and durable components ensure it can withstand exposure to the elements, requiring very little maintenance over its long operational life, making it a cost effective investment for any serious utility contractor.

By selecting our Head Board for Three Bundle Conductors, you are choosing a tool that embodies precision, strength, and safety, essential for the successful installation of modern high capacity transmission infrastructure.
